3-Side Timer

●One three-sided LED timer assembly (ceiling canopy + 3 LED display panels).
●2 ft suspension rod and 4.7″ ceiling canopy.
●Infrared remote control (programmable).
●Three Ethernet (RJ45) cables for display synchronization.
●One RJ45 power adapter.
●Six M6 mounting screws.
Each kit comes with everything needed to hang the timer, power and link the displays, and control it from the gym floor.

Model Number: KS-3ST-60

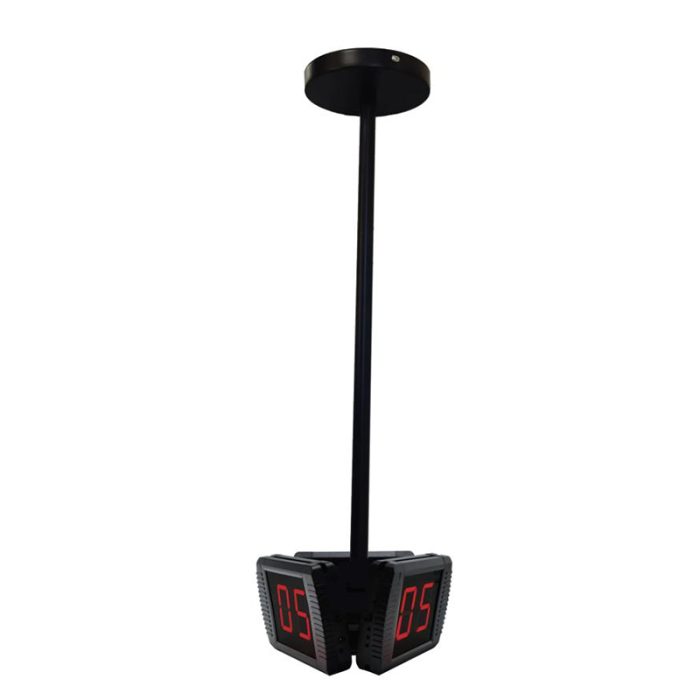

This ceiling-mounted 3-sided LED timer is built for gyms and training studios. Its sleek aluminum canopy and 2 ft suspension rod allow easy mounting over any workout area. Each of the three synchronized panels has large 3″ high digits in bright red/green dual-color, making countdowns easy to read from up to 25.5 m away. The timer comes pre-programmed with a default sequence (60 s green training countdown, 30 s red rest countdown), and these intervals can be fully customized via the included infrared remote control. With wide input power (110–250 VAC or 12 VDC) and rugged design, it operates reliably in –40 °C to +85 °C and up to 95% humidity.

 Highlights

Our 3-sided timer offers 360° visibility so everyone in the gym can see the clock. Its three bright LED displays keep time in sync, and the digits are large and clear even at long range. An infrared remote is included for easy start/stop/reset, and it works from any direction. Key features include:

  • Ceiling-suspended design– Includes a 2 ft metal rod and 7″ canopy for sturdy overhead mounting. The 3-panel bracket securely holds three timer units facing outwards.
  • Dual-color countdown– Green and red LEDs alternate for training/rest periods. (Default: 60 s green, then 30 s red; both times are user-adjustable via remote.)
  • Clear digital displays– Three synchronized 3″ digit panels show the same time. The bright LED digits are designed for maximum readability (similar timers boast displays visible 200+ ft away), and they remain sharp in gym lighting.
  • Remotecontrol included – Comes with an IR remote for changing modes, editing times, and pausing or resetting the timer. The remote’s range (over 50 m with unobstructed view) lets coaches and athletes operate the clock from anywhere on the floor.
  • Durablepower options – Runs on standard 110–250 VAC (adapter included) or +12 VDC. The timer’s electronics are housed in a rugged case that tolerates extreme gym environments (–40 °C to +85 °C, 5–95% RH).

Specifications

  • Displays:Three synchronized LED modules (each 235 × 158 × 5 mm) with red/green 3″ digits.
  • Countdownranges: Programmable; default cycle 60 s (green) and 30 s (red). Timer can count up or
  • Controls:Infrared remote (included) for programming and  Network sync via attached Ethernet cables links all three displays.
  • Power:AC 110–250 V (adapter supplied) or DC 12  AC cord ≤0.2 A.
  • Visibility:High-brightness LEDs ensure up to ~25.5 m viewing distance (bright daylight visibility).
  • Operatingenvironment: –40 °C to +85 °C; 5–95% relative humidity (no condensation).
  • Dimensions& Weight: Each display unit is 235 × 158 × 5 mm; weight 1.8 kg the whole unit.

What's Included

  • Onethree-sided LED timer assembly (ceiling canopy + 3 LED display panels).
  • 2 ftsuspension rod and 7″ ceiling canopy.
  • Infraredremote control (programmable).
  • ThreeEthernet (RJ45) cables for display
  • OneRJ45 power
  • SixM6 mounting

Each kit comes with everything needed to hang the timer, power and link the displays, and control it from the gym floor.
