Distribution Cabinet

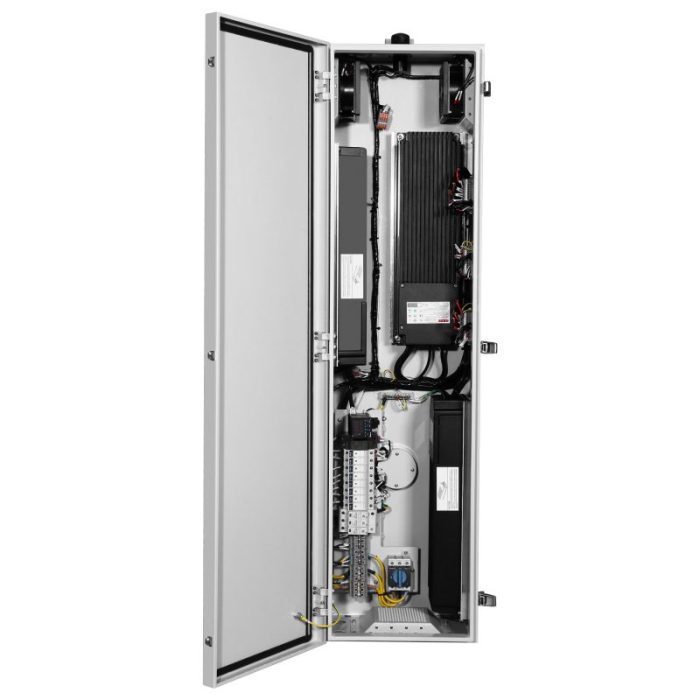

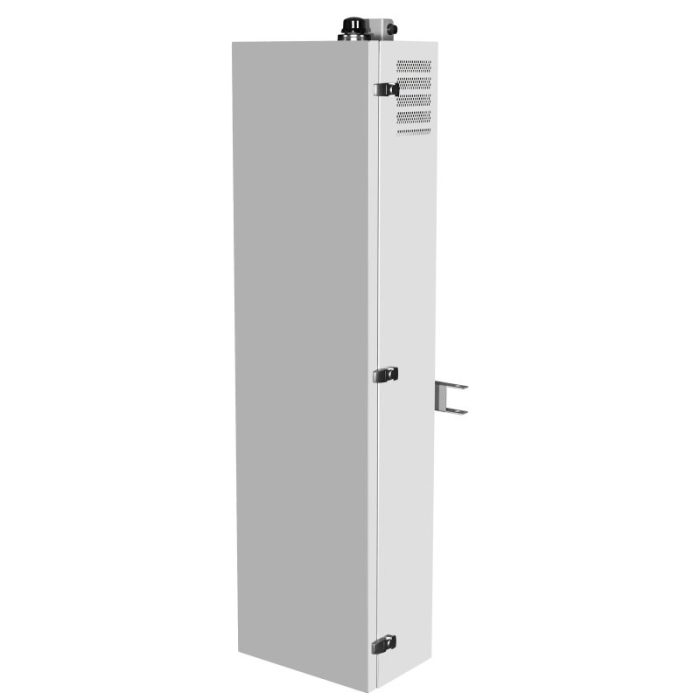

AL1 Distribution Cabinet

Intelligent Power & Control Hub for Professional Sports LED Lighting

Engineered for demanding sports field illumination, the AL1 Distribution Cabinet provides robust power distribution and advanced intelligent control for high-performance LED sports lighting systems. Featuring an IP54-rated enclosure and cutting-edge wireless control capabilities, it ensures reliable, flexible, and efficient operation for stadiums, arenas, and training facilities.

Key Features & Benefits:

1,Robust Power Management:

  • High-Efficiency Driver Modules:Constant current design achieving up to 97% efficiency, maximizing energy savings.
  • Powerful & Flexible Output:3 x 600W independent channels for versatile luminaire configuration.
  • Comprehensive Protection:Built-in Surge Protection (10kV Line-Line / 10kV Line-Earth), SCP (Short Circuit), OVP (Over Voltage), OTP (Over Temperature).
  • Superior Enclosure:IP54 rating protects against dust and water ingress. Compact design features excellent thermal management and a stable internal layout.

2.Advanced Intelligent Lighting Control:

  • Seamless Wired & Wireless Integration:Supports industry-standard DMX/RDM and DALI interfaces for direct control. Optional DMX-RDM module for address configuration.
  • Wireless Freedom:Control brightness and scenes remotely via GPRS/WiFi (range: 300 meters). Easily transition lighting setups between training sessions and professional matches.

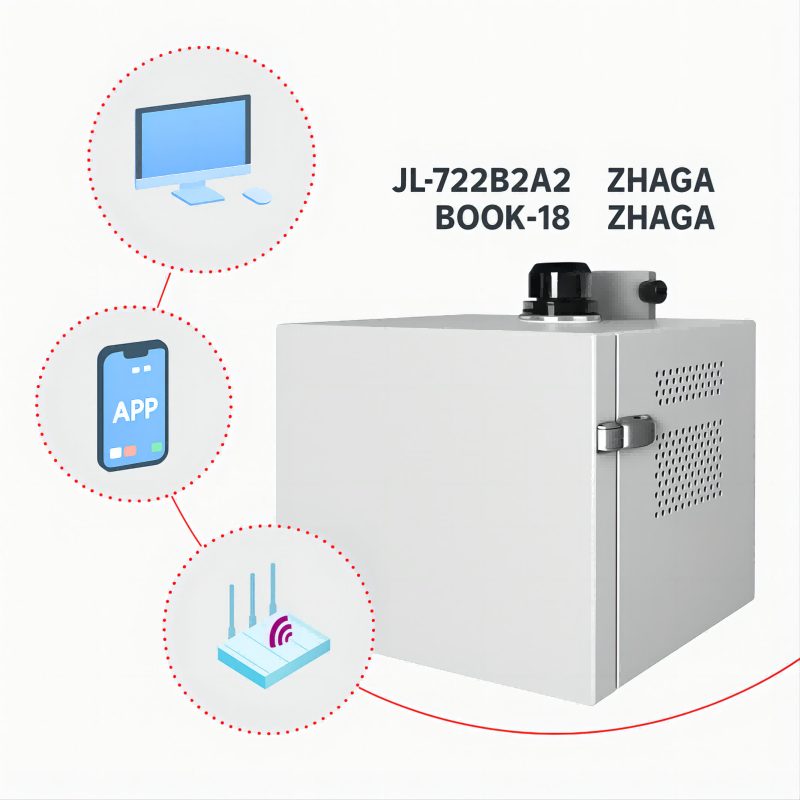

  • Bluetooth Mesh Control (Casambi):Integrates with the JL-722B2A2 Zhaga Book-18 controller for proximity control via the Casambi app. Configure parameters, create scenes, and manage lights effortlessly.
  • Sensor Ready:Compatible with NEMA and Zhaga interfaces, allowing easy connection of photocells, PIR motion sensors, and remote controls for automated operation.
  • Dynamic Effects:Supports flash functionality (up to 6 flashes/second) for event lighting.
  • Precise Dimming:Features smooth dimming down to “dim-to-off” with no residual glow

3.Optimized for Sports Lighting:

  • Tailored Solutions:Enables custom lighting effects and on-demand illumination levels specific to different areas of a sports venue.
  • Reliable Performance:Designed for the rigors of outdoor sports environments with high protection ratings and surge immunity.
  • Future-Proof:Open standards (DALI, DMX, Casambi, Zhaga, NEMA) ensure compatibility and easy integration with existing and future control systems.

Technical Specifications:

Model: AL1 Distribution Cabinet (IP54)

Output Channels: 3 x 600W (Constant Current, Independent)

Control Interfaces: DALI, DMX/RDM (Optional Module)

Wireless Control: GPRS/WiFi (300m range), Casambi Bluetooth Mesh (via JL-722B2A2 controller)

Dimming: 0-100% (Dim-to-off)

Flash Function: Up to 6 flashes/second

Surge Protection: 10kV (Line-Line), 10kV (Line-Earth)

Protections: SCP (Short Circuit Protection), OVP (Over Voltage Protection), OTP (Over Temperature Protection)

Enclosure Rating: IP54

Key Controller Compatibility: JL-722B2A2 Zhaga Book-18 Light Controller (Combined Light/Microwave Sensor, DALI Output, Casambi)

Application Focus: Football/Soccer Fields, Stadiums, Arenas, Tennis Courts, Baseball Fields, Athletic Tracks
